Specifications

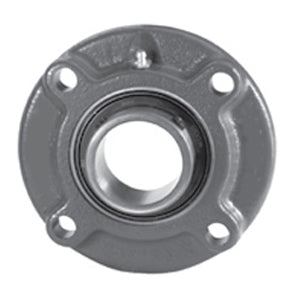

| title | FC3S231E |
| price | $ 153.71 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 3.039 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 4.88 |
| Bore | 1.938 Inch | 49.225 Millimeter |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 557969 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.813 Inch | 46.05 Millimeter |
| Cartridge Pilot Diameter | 4.25 Inch | 107.95 Millimeter |
| Cartridge Pilot Depth | 0.469 Inch | 11.913 Millimeter |
| Bolt Spacing | 3.6 Inch | 91.4 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 129.5 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | MB251-1516-PA |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip |
| Pilot Configuration | With Pilot |
