Specifications

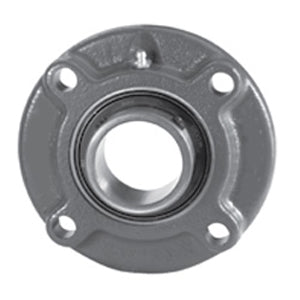

| title | FC3S224E |
| price | $ 123.07 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 2.09 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3.63 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 0662327670238 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 557973 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.656 Inch | 42.062 Millimeter |
| Cartridge Pilot Diameter | 3.625 Inch | 92.075 Millimeter |
| Cartridge Pilot Depth | 0.438 Inch | 11.125 Millimeter |
| Bolt Spacing | 3.1 Inch | 78.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.4 Inch | 111.8 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | MB251-12-PA |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip |
| Pilot Configuration | With Pilot |
