Specifications

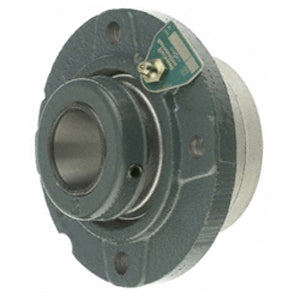

| title | FC-S2-307LE |
| price | $ 1,310.12 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 15.345 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 33.8 |
| Bore | 3.438 Inch | 87.325 Millimeter |
| EAN | 0782475315376 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 550846 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4 Inch | 101.6 Millimeter |
| Cartridge Pilot Diameter | 7.375 Inch | 187.32 Millimeter |
| Cartridge Pilot Depth | 1.266 Inch | 32.156 Millimeter |
| Bolt Spacing | 6.094 Inch | 154.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.6 Inch | 218.4 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | INS-S2-307L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Metallic Labyrinth |
| Pilot Configuration | With Pilot |
