Specifications

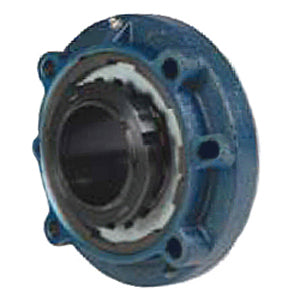

| title | FC-E-407R |
| price | $ 2,892.99 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 44.038 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 110 |
| Bore | 4.438 Inch | 112.725 Millimeter |
| EAN | 0782475699575 |
| Other Features | Double Row | Double Collar | Optional E-Tect Seal |
| Relubricatable | Yes |
| Global Part Number GPN | 550990 |
| Mounting Method | Set Screw |
| Length Thru Bore | 6.75 Inch | 171.45 Millimeter |
| Cartridge Pilot Diameter | 10.25 Inch | 260.35 Millimeter |
| Cartridge Pilot Depth | 1.5 Inch | 38.1 Millimeter |
| Bolt Spacing | 0 Inch | 0 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.8 Inch | 300 Millimeter |
| Housing Style | 6 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Single Lip Contact |
| Pilot Configuration | With Pilot |
