Specifications

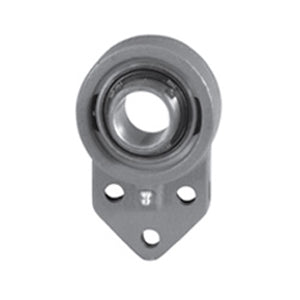

| title | FB3U222NK99 |
| price | $ 142.24 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3.4 |
| Bore | 1.375 Inch | 34.925 Millimeter |
| EAN | 793699753912 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 556341 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.766 Inch | 44.85 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 1.25 Inch | 31.75 Millimeter |
| Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
| Housing Style | 3 Bolt Flange Bracket |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | UG222NL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
