Specifications

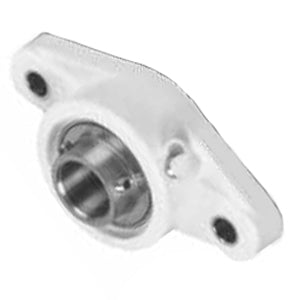

| title | FB260CTW X 7/8 |
| price | $ 114.98 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | HUB CITY |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 0.7 |
| Bore | 0.875 Inch | 22.225 Millimeter |
| EAN | 662798384566 |
| Other Features | Single Row | Spherical | Wide Inner Race | Has Flinger | Anti Rotation Pin |
| Relubricatable | Yes |
| Global Part Number GPN | 548152 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.343 Inch | 34.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.891 Inch | 98.83 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.9 Inch | 99 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | B250TW |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Glass Reinforced Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Silicone |
| Pilot Configuration | No Pilot |
