Specifications

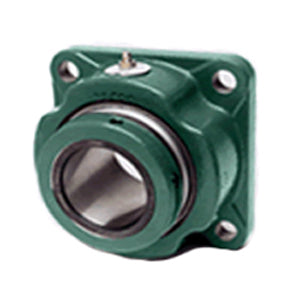

| title | F4S-S2-203R |
| price | $ 422.32 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 4.209 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 9.27 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| EAN | 0782475316649 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 546541 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.938 Inch | 74.625 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.516 Inch | 114.706 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.4 Inch | 162 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | INS-S2-203R |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
