Specifications

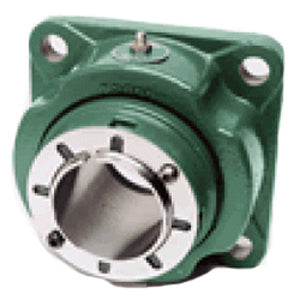

| title | F4S-IP-315LE |
| price | $ 1,892.75 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 15.767 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 34.73 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 0782475310104 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 551216 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 4.703 Inch | 119.456 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.609 Inch | 193.269 Millimeter |
| Nominal Bolt Circle Diameter Round | 10.7 Inch | 272.8 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/8 Inch |
| Insert Part Number | INS-IP-315L |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Metallic Labyrinth |
| Pilot Configuration | No Pilot |
