Specifications

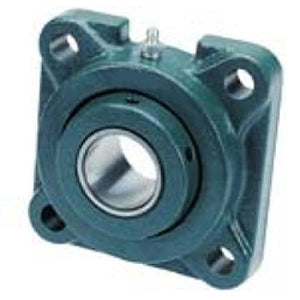

| title | F4B-UN2-207 |
| price | $ 999.93 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 5.094 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 10.5 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 0782475773046 |
| Other Features | Double Row | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 551400 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.203 Inch | 55.956 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.781 Inch | 121.437 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.8 Inch | 171.5 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | BRG-UN2-207 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
