Specifications

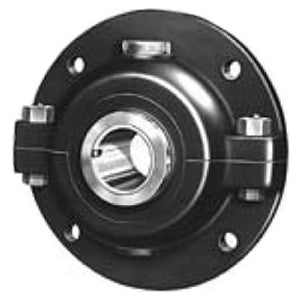

| title | F4B-SD-515 |
| price | $ 36,061.26 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 254.24 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 560 |
| Bore | 5.938 Inch | 150.825 Millimeter |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 551470 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 12 Inch | 304.8 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 15.91 Inch | 404.114 Millimeter |
| Nominal Bolt Circle Diameter Round | 22.5 Inch | 571.5 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1-1/4 Inch |
| Insert Part Number | DU-SD-515 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Dual Piston Ring Seal |
| Pilot Configuration | No Pilot |
