Specifications

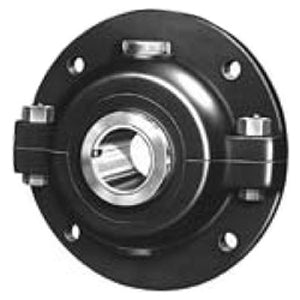

| title | F4B-SD-207E |
| price | $ 3,048.83 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 26.695 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 64 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 0782475054619 |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 551307 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.063 Inch | 128.59 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.248 Inch | 184.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 10.2 Inch | 260.2 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | S1U-SD-207 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Dual Piston Ring Seal |
| Pilot Configuration | No Pilot |
