Specifications

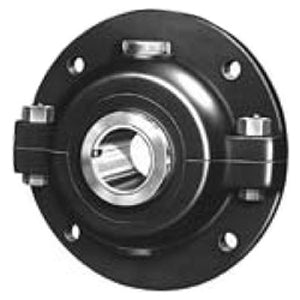

| title | F4B-SD-111E |
| price | $ 1,918.43 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 11.889 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 30 |
| Bore | 1.688 Inch | 42.875 Millimeter |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 551319 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 4.125 Inch | 104.775 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.392 Inch | 136.957 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.6 Inch | 193 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | S1U-SD-111 |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Dual Piston Ring Seal |
| Pilot Configuration | No Pilot |
