Specifications

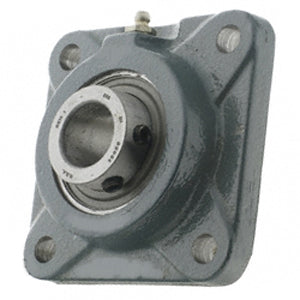

| title | F4B-SCMAH-308 |
| price | $ 894.38 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.454 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 28 |
| Bore | 3.5 Inch | 88.9 Millimeter |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Air Handling |
| Relubricatable | Yes |
| Global Part Number GPN | 551568 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.484 Inch | 63.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.75 Inch | 171.45 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.6 Inch | 244.9 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | INS-SCM-308 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
