Specifications

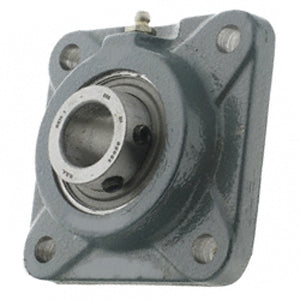

| title | F4B-SCMAH-204 |
| price | $ 268.87 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 4.672 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 11.1 |
| Bore | 2.25 Inch | 57.15 Millimeter |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Air Handling |
| Relubricatable | Yes |
| Global Part Number GPN | 551561 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.984 Inch | 50.4 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.625 Inch | 142.88 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.9 Inch | 200 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | INS-SCM-204 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
