Specifications

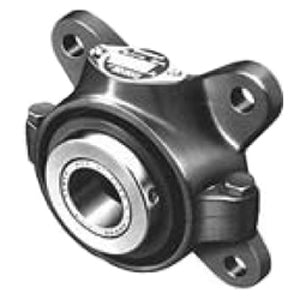

| title | F4B-K-108RE |
| price | $ 709.04 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 5.45 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 12 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 0782475698806 |
| Other Features | Double Row | Optional E-Tect Seal | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 551294 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3 Inch | 76.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.781 Inch | 121.437 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.8 Inch | 171.5 Millimeter |
| Housing Style | 4 Bolt Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | S1U-K-108R |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Land Riding Single Lip Contact |
| Pilot Configuration | No Pilot |
