Specifications

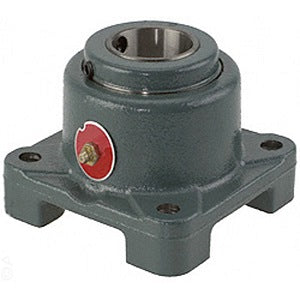

| title | F4B-E-103R |
| price | $ 214.69 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.82 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 4 |
| Bore | 1.188 Inch | 30.175 Millimeter |
| EAN | 0782475697762 |
| Other Features | Double Row | Optional E-Tect Seal | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 551376 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.75 Inch | 69.85 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.875 Inch | 73.025 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.1 Inch | 105 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Single Lip Contact |
| Pilot Configuration | No Pilot |
