Specifications

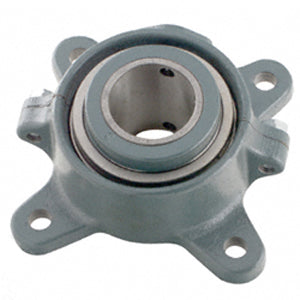

| title | F4B-DI-415R |
| price | $ 6,204.29 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 116.678 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 220 |
| Bore | 4.938 Inch | 125.425 Millimeter |
| EAN | 0782475718139 |
| Other Features | Double Row | Heavy Duty | Optional E-Tect Seal | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 551378 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 7.25 Inch | 184.15 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 11.313 Inch | 287.35 Millimeter |
| Nominal Bolt Circle Diameter Round | 16 Inch | 406.4 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1-1/8 Inch |
| Insert Part Number | DU-DI-415R |
| Housing Configuration | 2 Piece Split |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Single Lip Contact |
| Pilot Configuration | No Pilot |
