Specifications

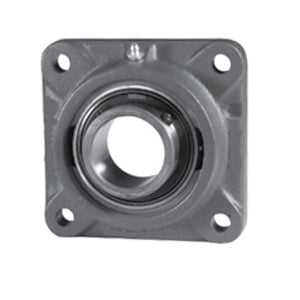

| title | F3S220EK6 |
| price | $ 135.68 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 3.4 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 793699544022 |
| Other Features | Single Row | Spherical | Intermediate Duty | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 556820 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.563 Inch | 39.69 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.625 Inch | 92.08 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | SG220EL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
