FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

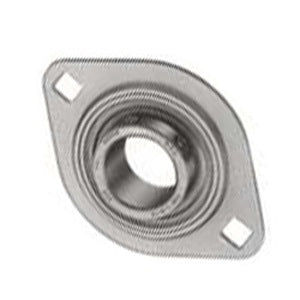

| title | F2B-SL-100 |
| price | $ 33.44 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.3 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 0.65 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 0782475434565 |
| Other Features | Single Row | Light Duty | Narrow Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 550537 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.094 Inch | 27.8 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3 Inch | 76.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 11/32 Inch |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stamped Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
