Specifications

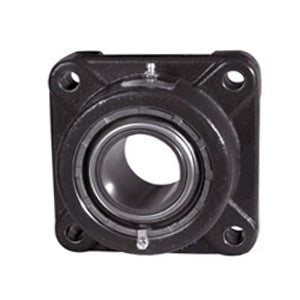

| title | EFRB224M60H |
| price | $ 623.52 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 17.417 |
| Bore | 2.362 Inch | 60 Millimeter |
| EAN | 793699130553 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 559252 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.374 Inch | 136.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.6 Inch | 193 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | B224M60HL |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Pilot Configuration | No Pilot |
