Specifications

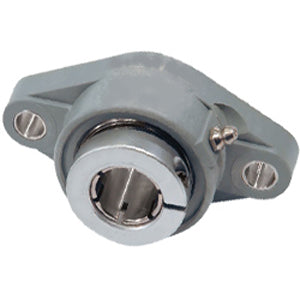

| title | CRFTC-PN16T |
| price | $ 139.99 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 0.827 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 662461338841 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 558758 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.375 Inch | 34.925 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.891 Inch | 98.83 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.9 Inch | 99 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | PN-16T |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Composite |
| Expansion / Non-expansion | Non-expansion |
| Seals | High Performance Seal |
| Pilot Configuration | No Pilot |
