FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

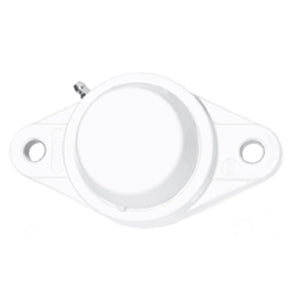

| title | BNFL4CEW |
| price | $ 62.12 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.25 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.54 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 0808250120697 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing | Closed End |
| Relubricatable | Yes |
| Global Part Number GPN | 534767 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0.972 Inch | 24.7 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.543 Inch | 90 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.5 Inch | 90 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | B4 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
