Specifications

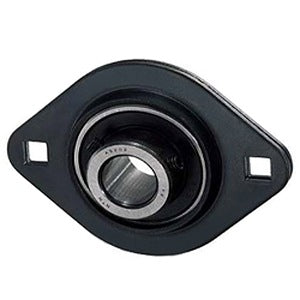

| title | ASPFL202-010 |
| price | $ 23.73 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.09 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 0.2 |
| Bore | 0.625 Inch | 15.875 Millimeter |
| EAN | 4547359019827 |
| Other Features | Single Row | Light Duty | Narrow Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 554127 |
| Mounting Method | Set Screw |
| Length Thru Bore | 0.866 Inch | 22 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.469 Inch | 62.713 Millimeter |
| Nominal Bolt Circle Diameter Round | 2.5 Inch | 64 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1/4 Inch |
| Insert Part Number | AS202-010 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stamped Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contour Riding |
| Pilot Configuration | No Pilot |
