Specifications

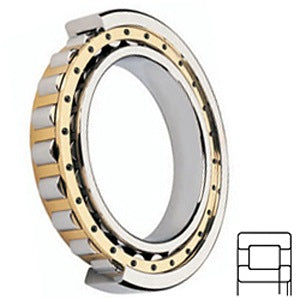

| title | NUP315-E-M1-P63-F1 |
| price | $ 1,374.14 / each |
| Category | Cylindrical Roller Bearings |
| UNSPSC | 31171547 |
| Harmonized Tariff Code | 8482.50.00.00 |
| Manufacturer Name | SCHAEFFLER GROUP USA INC |
| Inch - Metric | Metric |
| Brand | FAG BEARING |
| Weight / LBS | 8.135 |
| Bore | 2.953 Inch | 75 Millimeter |
| EAN | 4012801390729 |
| Other Features | High Capacity | Optional Steel Cage | 1 Rib Inner Ring with Side Plate | 2 Rib Outer Ring | Medium Series | Cage on Oute |
| Outside Diameter | 6.299 Inch | 160 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 449450 |
| Precision Class | RBEC 3 | ISO P6 |
| Width | 1.457 Inch | 37 Millimeter |
| Number of Rows of Rollers | Single Row |
| Retainer | Yes |
| Separable | No |
| Bore Profile | Straight |
| Profile | Complete with Outer and Inner Ring |
| Snap Ring | No |
| Internal Clearance | C3-Loose |
