FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
| title | NN3020KC1NAP5 |
| price | $ 806.45 / each |

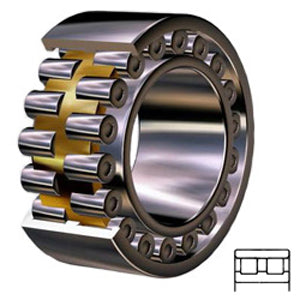

| Category | Cylindrical Roller Bearings |
| UNSPSC | 31171547 |
| Harmonized Tariff Code | 8482.50.00.00 |
| Manufacturer Name | NTN |
| Weight / kgm | 2.2 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 4.84 |
| Bore | 3.937 Inch | 100 Millimeter |
| Other Features | 3 Rib Inner Ring | Plain Outer Ring | Precision Bearing | Cage on Inner Ring OD |
| Outside Diameter | 5.906 Inch | 150 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 453570 |
| Precision Class | RBEC 5 | ISO P5 |
| Width | 1.457 Inch | 37 Millimeter |
| Number of Rows of Rollers | Double Row |
| Retainer | Yes |
| Separable | Outer Ring - Both Sides |
| Bore Profile | Tapered |
| Profile | Complete with Outer and Inner Ring |
| Snap Ring | No |
| Internal Clearance | C1NA |
