Specifications
| title | NN3009KC1NAP4 |
| price | $ 471.83 / each |

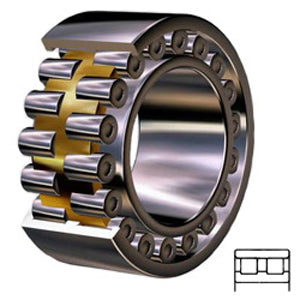

| Category | Cylindrical Roller Bearings |
| UNSPSC | 31171547 |
| Harmonized Tariff Code | 8482.50.00.00 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.38 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 0.84 |
| Bore | 1.772 Inch | 45 Millimeter |
| EAN | 4547359130133 |
| Other Features | 3 Rib Inner Ring | Plain Outer Ring | Precision Bearing | Cage on Inner Ring OD |
| Outside Diameter | 2.953 Inch | 75 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 453535 |
| Precision Class | ABEC 7 | ISO P4 |
| Width | 0.906 Inch | 23 Millimeter |
| Number of Rows of Rollers | Double Row |
| Retainer | Yes |
| Separable | Outer Ring - Both Sides |
| Bore Profile | Tapered |
| Profile | Complete with Outer and Inner Ring |
| Snap Ring | No |
| Internal Clearance | C1NA |
