Specifications

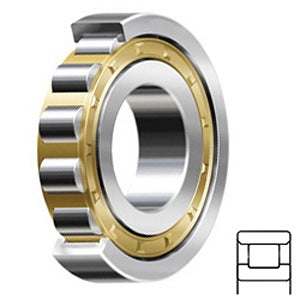

| title | N330MC3 |
| price | $ 3,884.70 / each |
| Category | Cylindrical Roller Bearings |
| UNSPSC | 31171547 |
| Harmonized Tariff Code | 8482.50.00.00 |
| Manufacturer Name | NSK |
| Weight / kgm | 26.32 |
| Inch - Metric | Metric |
| Brand | NSK |
| Weight / LBS | 57.981 |
| Bore | 5.906 Inch | 150 Millimeter |
| EAN | 0029176026096 |
| Other Features | Standard Capacity | 2 Rib Inner Ring | Plain Outer Ring | Medium Series | Cage on Inner Ring OD |
| Outside Diameter | 12.598 Inch | 320 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 451414 |
| Precision Class | RBEC 1 | ISO P0 |
| Width | 2.559 Inch | 65 Millimeter |
| Number of Rows of Rollers | Single Row |
| Retainer | Yes |
| Separable | Outer Ring - Both Sides |
| Bore Profile | Straight |
| Profile | Complete with Outer and Inner Ring |
| Snap Ring | No |
| Internal Clearance | C3-Loose |
