Specifications

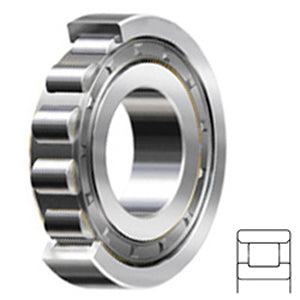

| title | N309WC3 |
| price | $ 184.58 / each |
| Category | Cylindrical Roller Bearings |
| UNSPSC | 31171547 |
| Harmonized Tariff Code | 8482.50.00.00 |
| Manufacturer Name | NSK |
| Weight / kgm | 0.85 |
| Inch - Metric | Metric |
| Brand | NSK |
| Weight / LBS | 1.874 |
| Bore | 1.772 Inch | 45 Millimeter |
| Other Features | Standard Capacity | 2 Rib Inner Ring | Plain Outer Ring | Medium Series | Cage on Inner Ring OD |
| Outside Diameter | 3.937 Inch | 100 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 451362 |
| Precision Class | RBEC 1 | ISO P0 |
| Width | 0.984 Inch | 25 Millimeter |
| Number of Rows of Rollers | Single Row |
| Retainer | Yes |
| Separable | Outer Ring - Both Sides |
| Bore Profile | Straight |
| Profile | Complete with Outer and Inner Ring |
| Snap Ring | No |
| Internal Clearance | C3-Loose |
