Specifications

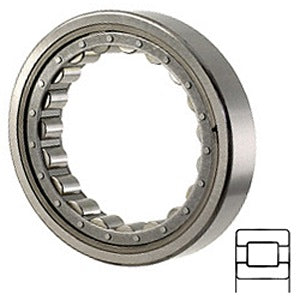

| title | M1213EAHL |
| price | $ 113.30 / each |
| Category | Cylindrical Roller Bearings |
| UNSPSC | 31171547 |
| Harmonized Tariff Code | 8482.50.00.00 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Bore | 3.166 Inch | 80.42 Millimeter |
| EAN | 4547359487992 |
| Other Features | 2 Rib Outer Ring | Oversize OD | Blind Dowel Hole in Outer Ring OD | Cage on Outer Ring ID |
| Outside Diameter | 4.727 Inch | 120.056 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 452313 |
| Precision Class | RBEC 1 | ISO P0 |
| Width | 0.906 Inch | 23 Millimeter |
| Number of Rows of Rollers | Single Row |
| Retainer | Yes |
| Separable | No |
| Bore Profile | Straight |
| Profile | Roller Assembly with Outer Ring - No Inner Ring |
| Snap Ring | No |
| Internal Clearance | C0-Medium |
